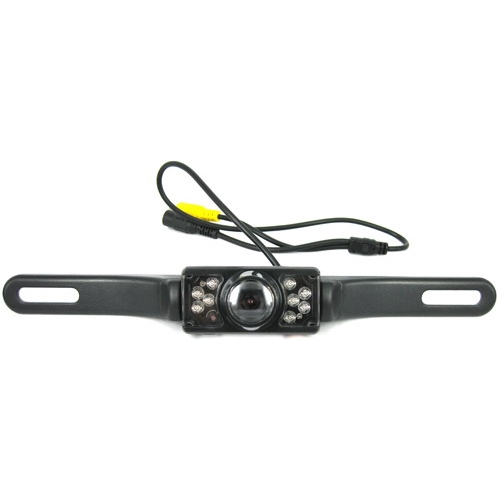

PAL System Car Rear View Reversing Color CMOS Camera

Price:   US$13.07

  • Model: CEC_CRV_000
  • Shipping Weight: 0.35kg
  • 168 Units in Stock

Quantity Discount Policy

2 - 410%
5 - 915%
10 - 1918%
20 - 2922%
30 + 25%
****45Days Refund Or Replacement,18Month Warranty.Free Shipping Worldwide From EU,AU,UK,US,HK Warehouse Enjoy Customs Duties Free.
(Processing Order In 12hours,Complete Orders Today,Deliverd Around 03/01/2024)

  • Specifications:
  • Plastic casing and waterproof design for outdoor application
  • Anti-fog function
  • Display the barriers at the back of cars, the driver may backup the car safely and evade the barriers through this rearview camera that also displays the distance of the car away from the barrier
  • High definition IR night viewing illumination (Built-in seven IR lamps); Low illumination but high definition camera produces clearer images
  • Image device: 1/3 Inch Colour CMOS
  • Distance of transmission: 100M (no barrier)
  • Resolution: 420-cable image sensor
  • Visual angle: 120 degrees
  • Diagonal visual angle: 90 degrees (Vertical visual angle)
  • Shockproof: 6.8
  • Emission frequency: 2,414MHz
  • Video input: 1.0V p-p, 75Ω
  • Power supply: DC12 + 6V, 200mA
  • Working temperature: -20 - 60degrees Celsius
  • Receiver:
    - Plug and play-convenient to use
    - Sensitivity: -93dbm, video bandwidth: 8.0MHz
    - Frequency receiving mode: Built-in frequency phase lock loop
    - Signal demodulation mode: Wideband frequency demodulation
    - RF input impedance: 75Ohm, IF frequency: 480MHz
    - IF bandwidth: 18MHz, AV output: Composite video
    - Working voltage: DC5V
    - Working current: 150mA
    - Working temperature: -20 - 60 degrees Celsius
  • Applicable for all kind of cars, connect red cable to the anode of backup lamp and connect black cable to the cathode
  • Approved: CE / FCC
