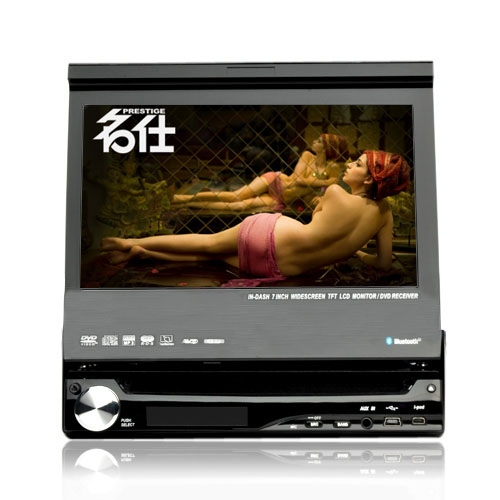

7 Inch TFT LCD Touch Screen Car DVD Player - GPS + Analog TV

Price:   US$380.66

  • Model: CEC_CDP_164
  • Shipping Weight: 4kg
  • 168 Units in Stock


Quantity Discount Policy

QuantityDiscount
2 - 410%
5 - 915%
10 - 1918%
20 - 2922%
30 + 25%
****45Days Refund Or Replacement,18Month Warranty.Free Shipping Worldwide From EU,AU,UK,US,HK Warehouse Enjoy Customs Duties Free.
(Processing Order In 12hours,Complete Orders Today,Deliverd Around 04/01/2024)
SHIPPING ESTIMATOR
Details
The GPS units EstoresChina provides are compatible with most brands of GPS software such as Route 66... However, EstoresChina only provides a test version GPS Map, We can't guarantee it is a latest version to you. If you want to upgrade, you would better buy a latest local version and perform under the professional guidance. EstoresChina can't provide downloads / links / suggestions regarding GPS software.

  • Specifications:
  • 1 DIN ISO mounting chassis
  • Main functions: DVD, Camera, Analog TV, GPS, Radio, Aux, MP3 / MP4, USB / SD
  • Built-in Amplifier & DVD player
  • FM / AM present 30 station( AM 12 / FM 18 )
  • Built-in RDS function
  • Beautiful picture OSD touchscreen control
  • Burglarproof detachabel panel
  • Electronic and mechanical anti-shock system: DVD 3 seconds; VCD / CD 10 seconds; MP3 90 seconds
  • Rear monitor video output
  • Front SD card slot and mini-USB port
  • Front port and full function control
  • Great 45 Watts x 4 sound ouput
  • Four preset EQ and manual control
  • 4-CH RCA line out for headrest monitor
  • Full-function wireless remote control
  • DVD support discs played: DVD, DVD-R, DVD-RW, DIVX< MPEG4, CD, CD-DA, CD-R, CD-RW, MP3, WMA, VCD and SVCD
  • Screen:
    - 7 inch TFT LCD( 16:9 )
    - Horizontal resolution: 480 x 3(RGB) x 234
    - Spot pitch( H x V ): 0.107 x O.372
    - Contrast: 150:1
    - Response speed: R:30 / F:50
    - Viewing angle: U:15/D:35; L/r:55
    - Lamp longevity: Over 10 thousand hours
  • Analog TV function:
    - Frequency range: 48.25MHz ~ 847.25MHz
    - TV display system: PAL / NTSC / SECAM / SECAM_L
    - Audio system: DK / I / BG
  • Radio function:
    - FM frequency range: 87.5MHz ~ 108.0MHz
    - AM frequency range: 522KHz ~ 1620KHz
    - FM sensitivity: ≤ 25db
    - AM sensitivity: ≤ 45db
    - Signal-noise ratio( S / N ): ≥ 50dB
    - Distortion: ≤ 0.3%
  • GPS specification:
    - Main frequency: 400MHZ
    - Operation system: WINCE5.0 CORE
    - Support audio type: MP3 / PCM / WMA
    - Support video type: ASF / AVI / WMV / DIVX
    - Audio output: Stereo CD quality
    - Chip set: SiRF Star III
    - Frequency: 1.575GHZ
    - Channel number: 20 channels
    - Tracking sense degree: -159dBm
    - Position accuracy: 10m, 20 RMS 5m, 20 RMS, WAAS enable
    - Velocity: 0.1m/s
    - Data renewal rate: 1HZ
    - Re-catching time: Average 0.1s
    - Hot start time: Average 1s
    - Warm start time: Average 38s
    - Cold start time: Average 42s
    - The biggest fixed height: 18,000m
    - The biggest velocity: 515m/s
  • Laser wave length: DVD 650nm; CD 780nm
  • Pick up: SHARP 60
  • Audio signal-noise ratio( S / N ): ≥ 80dB
  • Dynamic scope: ≥ 80dB
  • Menu language: Chinese / English / Spanish / French / German / Italian
  • Power supply: DC 13.8V
  • Outer dimension( W x H x D): 176mm x 50mm x 183mm
  • Approved: CE / FCC
  • After Sales Service: 1 Year Warranty

  • Accessories:
  • 1 x ISO Power Output Wire
  • 1 x Wire
  • 1 x GPS Antenna
  • 1 x Touch Pen
  • 1 x User Manual
  • 1 x Remote Control
  • 2 x Install Bracket
  • 1 x Plastic Frame
  • 1 x USB
