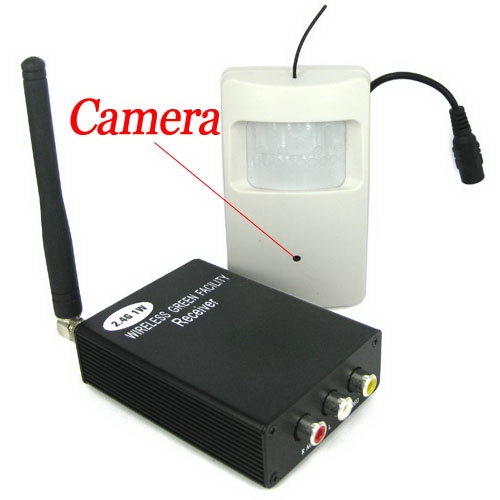

2.4GHz Wireless Transmission Kits - 4 Channels Transmitter + Cameras

Price: US$57.86

(0 reviews)

(Processing Order In 12hours,Complete Orders Today,Deliverd Around 04/23/2024)

Product QTY: Country/Region:

Details

General Specifications:
Working frequency: 2414-2468MHz
Channels: Available in 4 Channels
Transmission Distance: 100m (Min.)
Modulation Mode: FM
Transmit dual=track audio and a video signal
Video signal format: PAL / NTSC
Audio input impedance: 1kΩ
Video output impedance: 75Ω
Power supply: 12V (DC)
Operating Temperature: -10 ~ + 50 degree Celsius
Storage Temperature: -20 ~ + 60 degree Celsius
Operating Humidity: >/= 85%RH
Camera Specifications:
1/4 inch CCD 420TV lines sharp picture display
Min 100m(300 feet) transmission distance without block
TV System: PAL / NTSC
Validity Pixel:
- PAL: 628(H) x 582(V)
- NTSC: 510(H) x 492(V)
Imaging Sensor: 1/3 inch sony CCD
Horizontal Definition: 420 TV Lines
Minimum Illumination: 1.0Lux / F1.2
View Angle: 59.4 Degree
Gain Control: Automatic
S/N Ration: 48Db (AGC OFF)
Can be used on TV monitor LCD etc.
Suitable for monitoring children and elders and widely used for theft prevention after-hours surveillance home security etc
Consumption Current: 120(Max)mA
Operation Temperature: -10 ~ +50 degrees Celsius
Storage Temperature: -20 ~ +60 degrees Celsius
Transmission Frequency: ISM 2 400 ~ 2 483MHz
Power Supply: DC +12V
Approved: CE / FCC
